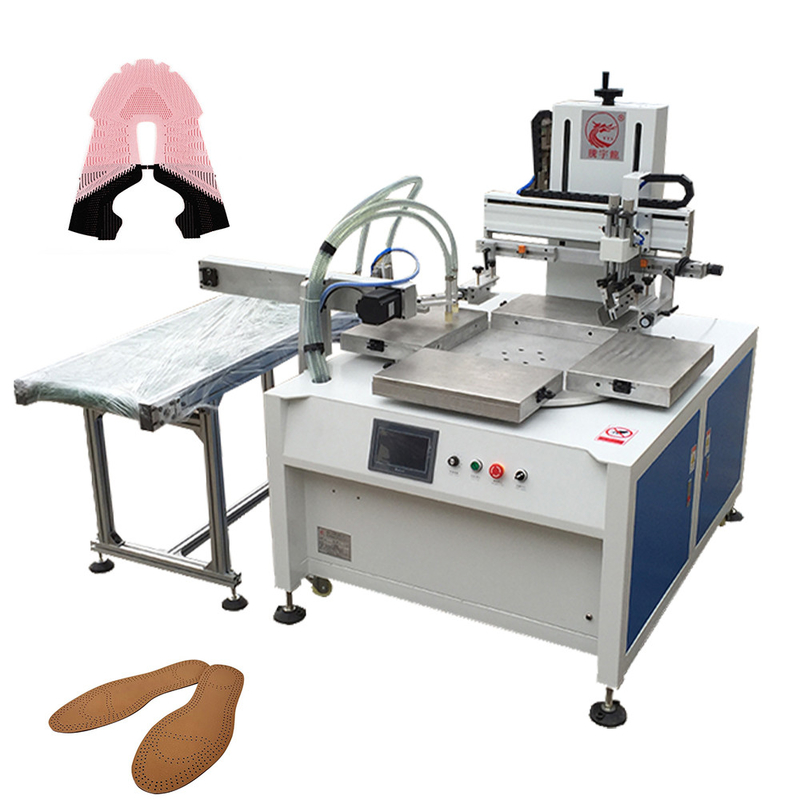

Nike Fabric Print Silk Fully Automatic Screen Printing Machine Used For Automatic Printing Of Insoles And Shoe Uppers
Fulund Automatic Screen Printing Machine
Screen printing belongs to stencil printing, and it is called the four major printing methods together with lithographic printing, letterpress printing, and gravure printing. Stencil printing includes transcription, perforated pattern, spray pattern and screen printing. The principle of stencil printing is: during printing, the printing plate (paper film plate or other plate base with holes through which the ink can pass) transfers the ink through the holes of the stencil to the substrate (paper, ceramics, etc.) through a certain pressure. ) to form images or text.
Scope of application:

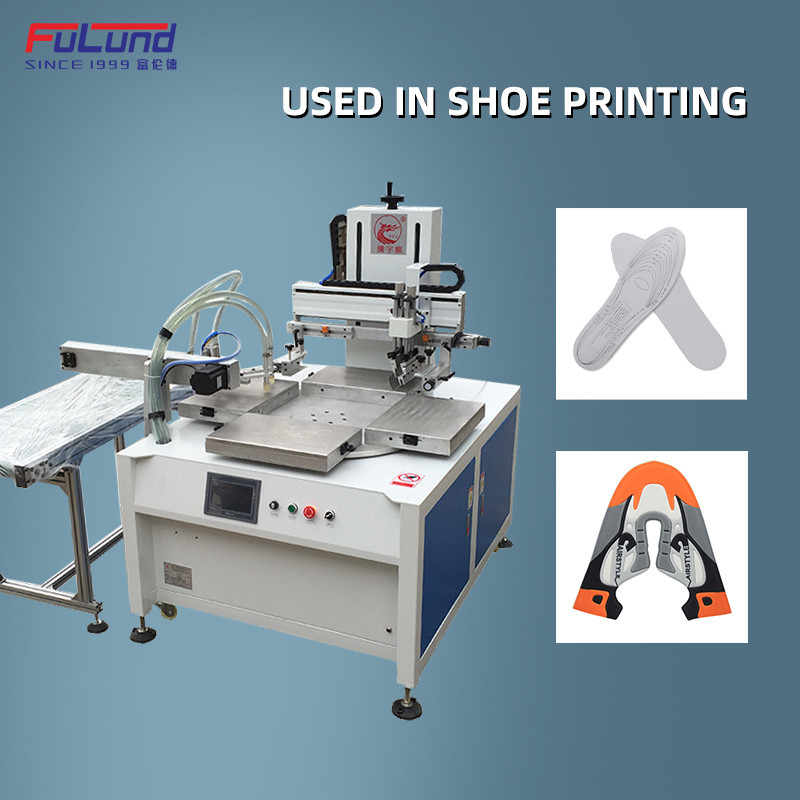

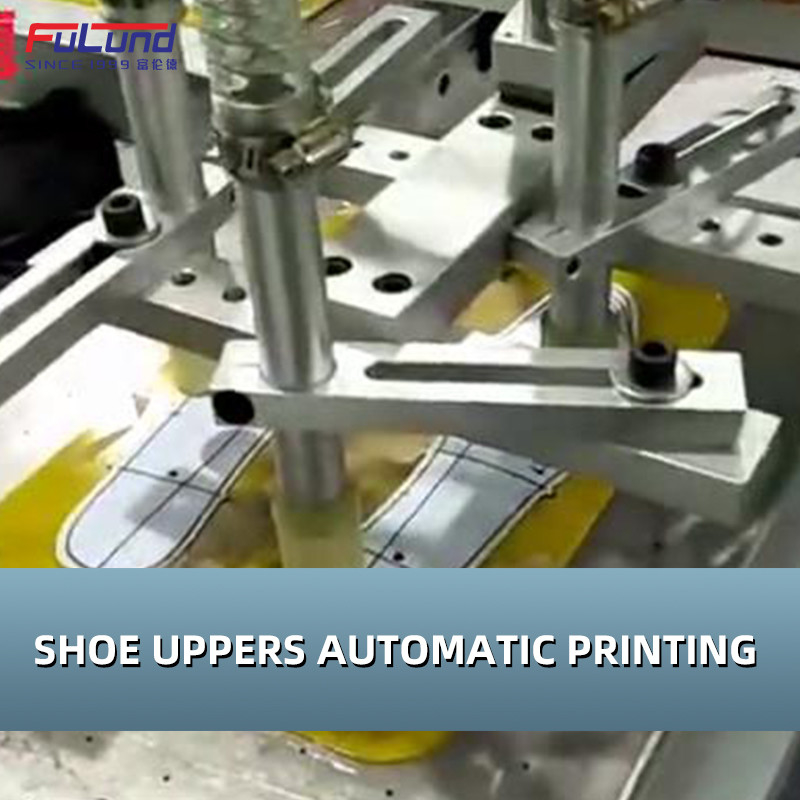

Widely use in the printing of gloves, insoles, shoes upper, mid-sole, bags and other industries , print the position line, mark line and other various shape of cut-parts .
Features:
1, Automatic printing, automatic receiving, can stack according to the setting quantity, no need manual count and can packaging directly.
2, Manual feeding material , suit for any shape material, broad scope.
3, Positioning rapid, change printing plate easily, simple to operate.
4, Reduce manual printing and receiving process, workers only need put the material, high efficiency, 2 Seconds one time, the efficiency is 1.5 times of the traditional process.
| Model No. |
Machine measure(mm) |
Wood case measure(mm) |
N.W/ G.W (kg) | Capacity |
Max printing size |
| FLD-688C | 1740*1500*1530 | 1830*1570*1650 | 450/550 | 1500times/hour | 450*300mm |
| Voltage | Air pressure | Power |
Printing thickness |
Printing platform |
|
| 220V | 4.5~6kpa | 6.9kw | 0~50mm | 600mm |
Contrast:
| Capacity | Feeding way | Receiving way | Printing way | Operator | |
| Traditional machine | 800times/hour | Manual | Manual | Manual put label | 1 |
| FLD-688C | 1500times/hour | Manual | Automatic | Automatic put label | 1 |
Conclustion:Use FLD-688C, four-station, factory can become automatic, one person can operate one set machine, workers only need put the material, no need manual print, can reduce operator fatigue, higher efficiency, can save more labor cost. For example: Monthly labor cost $547, the label cost can save 547x12x1.5=$9846 one year.
