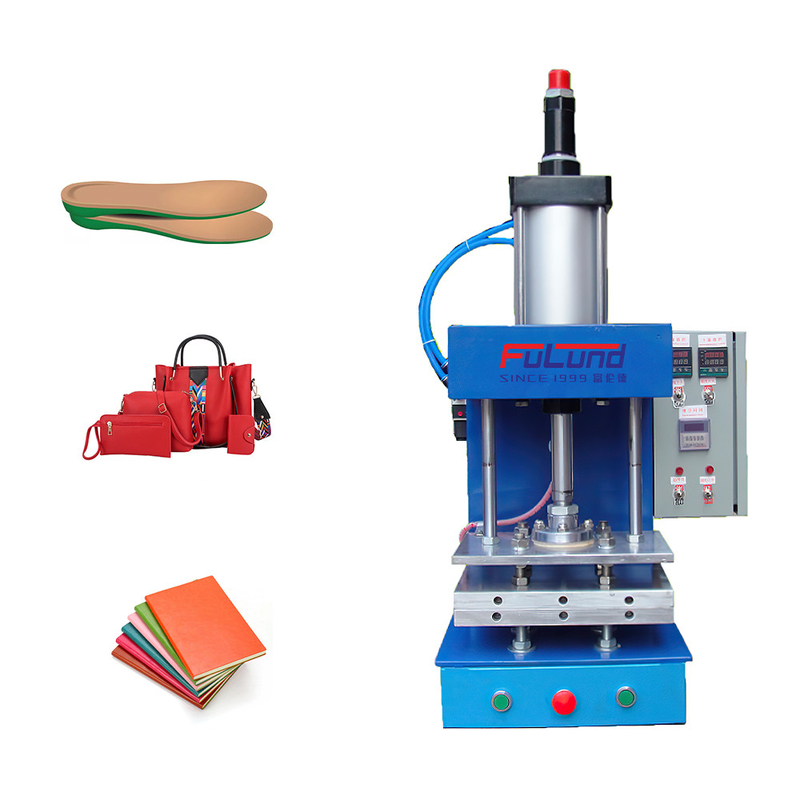

Nike Aj Adidas Wholesale Hot pressing machine Air pressure type leather brand machine
FULUND equipment includes: hot label machine series, label heat transfer series, screen printing series, soft glue label series, glue dispenser series.
All products comply with export standards and have passed CE, RoHS and ISO9001 certifications of European, American and Southeast Asian standards
Replacing traditional equipment with Fulund equipment can help you save 840,000 yuan/unit/year, create profits and help you save labor costs more quickly.
Features of heat press machine:
1. Powered by compressed air, the descending speed is adjustable
2. Mini table C type model
3. The adjustable stroke of the cylinder is easy to adjust, and the downward speed of the cylinder is adjustable
4. The mechanical start method has a double button switch (or optional foot switch) design
5. The cylinder is equipped with anti-rotation double guide rods to make the work more accurate; in addition, the output of the cylinder can be adjusted by the pressure regulating valve
6. The upper and lower molds have heating function (for hot pressing, stamping, branding, bronzing, printing, etc.)
7. Use pressure (air pressure): 4-7KG/square centimeter Maximum mechanical stroke: 120MM adjustable 50MM
8. Adjustable temperature: normal temperature -250 degrees, adjustable up and down independent temperature control Mechanical appearance: W400*D600*H500MM
9. Hot pressing time: 0.01S-99.99H can be adjusted arbitrarily; heating plate area: 200*300MM (size can be customized)
10. Power of the whole machine: 5KW Power supply voltage: 380/220V (single-phase) Mechanical weight: 70KG
Hot press setting machine parameters
1. Automatic constant temperature,
2. Automatic timing
3. Automatic counting
4. C frame construction
5. Double start switch
| Heating plate area | 200MM*300MM | 300MM*400MM |
| Temperature regulation | Room temperature~300°C can be adjusted arbitrarily | Room temperature~300°C can be adjusted arbitrarily |
| Temperature control | Automatic constant temperature | Automatic constant temperature |
| temperature accuracy | ±2℃ | ±2℃ |
| Air pressure | 0.4-0.7Mpa | 0.4-0.7Mpa |
| power supply | AC220V±5% 50/60HZ | AC380V±5% 50/60HZ |
| Power | 3.6KW | 5.6KW |
| Hot pressing time | 0.1S~99.99H | 0.1S~99.99H |
| Mechanical pressure | 300KG -800KG Adjusted | 300KG -800KG Adjusted |
| cylinder can adjust the distance | 50MM | 50MM |
| host volume | 550×480×960MM | 650*500*980MM |
| Upper and lower mold distance | 150MM | 150MM |
| weight | 90KG | 130KG |
